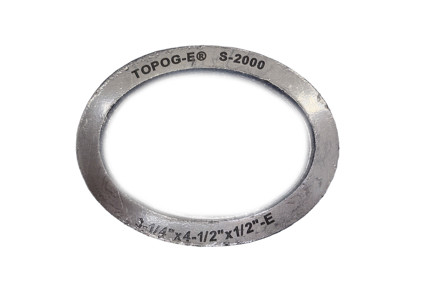

Topog-E S2000 - 3-1/4" x 4-1/2" x 1/2" E Graphite Elliptical Hand Hole Gasket

3 1/4 X4 1/2X1/2 E GRAPHITE GASKET
$9.31 Subscribe to save up to 10%
SKU: S200031441212E
Email a co-worker
Subscribing saves you time and money!

Subscribe to our Gasket Subscription program for automatic renewals. Easy & efficient.

More about this product

Topog-E 2000 series gaskets can be used as a cost-effective sealing alternative in most types of higher pressure industrial vessels and tanks that have inspection openings. The proprietary graphite used to manufacture these gaskets gives them exceptional thermal stability combined with chemical inertness, ensuring superior service capability under simultaneous conditions of saturated and superheated steam. They provide boiler manufacturers, users and service companies handhole and manhole gaskets with unprecedented characteristics.

Details:

  • 3-1/4x4-1/2x1/2 series S2000 graphite elliptical manway gasket
  • Reinforced exfoliated graphite foil
  • Temperature: up to 636° F (336° C) in steam boilers
  • Temperature up to 850° F (454° C) in atmosphere
  • Pressure: 250 - 2,000 PSIG (17 - 138 bar)
  • M Factor: 2 (Smooth Flange Surface)
  • Y Stress: 900 PSI (6MPa) (Smooth Sealing Surface)
  • Max Gasket Load = 24,000 PSI (165 MPa)
