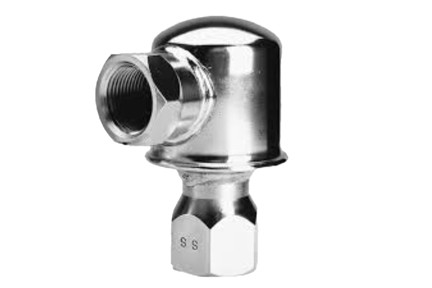

TTF1R - 1/2" NPT, 300 PSI, Thermostatic Air Vent

Armstrong offers TTF-1R thermostatic air vents for positive venting of air and other non-condensable gases from steam in chamber-type heat-transfer equipment. Typical applications include jacketed kettles, retorts, vulcanizers, jacketed sterilizers or other contained equipment where air could accumulate in remote areas of the steam chamber and reduce heat-transfer capacity. These vents are balanced pressure air vents that respond to the pressure-temperature curve of steam. Air is automatically vented at slightly below steam temperature throughout the entire operating pressure range.

Details:

• Maximum capacity: 104 SCFM
• Maximum allowable pressure (MAP) : 300 PSIG @ 450° F (20 bar @ 232° C)
• Maximum operating pressure (MOP) : 300 PSIG (20 bar)
• Connection type: screwed
• Connection Size: 1/2"
• Orifice size: 3/16"
• Air vent type: thermostatic right angle air vent
• Body material: 304L stainless steel
