The Flame Safeguard is an industry term used to define the safety controller that operates your burner. It is a carefully designed burner control that follows a set series of functions to make sure your burner operates safely. The controllers come in many different brands like Honeywell, Fireye, Autoflame, and more.

If you do not see the part you want below, feel free to use the chat function and see if we possibly have the part you are looking for in stock.

Boiler Flame Safeguard Controls

Most Popular

What Are Flame Safeguard Controls & What Is Their Function?

Flame Safeguard Controls monitor burner flames

Flame safeguards comprise all of the safety equipment in a boiler’s gas train and fire side that monitor and confirm proper combustion at the burner, and control the fuel supply as needed. Together, they keep the boiler operating safely and efficiently.

Flame Safeguard Controls confirms correct combustion

Whether you’re talking oil or fuel gas, boiler fuel is volatile. That means that the boiler’s fire side has to be carefully monitored to make sure that the burners start safely, maintain their flame, and extinguish when the fuel supply is cut off.

There are several pieces of equipment that work together to accomplish this.

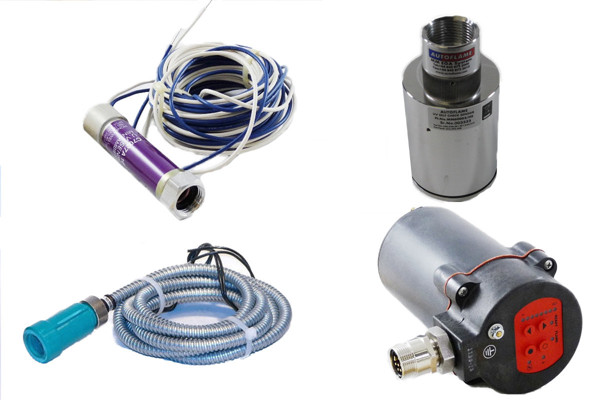

Flame Scanners are designed to detect specific wavelengths of light, and convert any detected light into a weak electrical current.

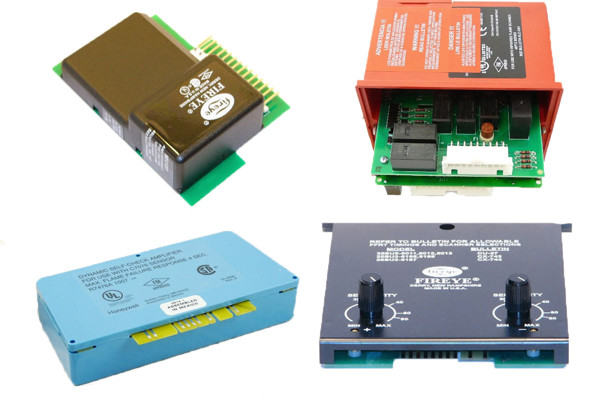

Amplifiers power the flame scanners and amplify the sensor signal to be readable by the boiler’s control system.

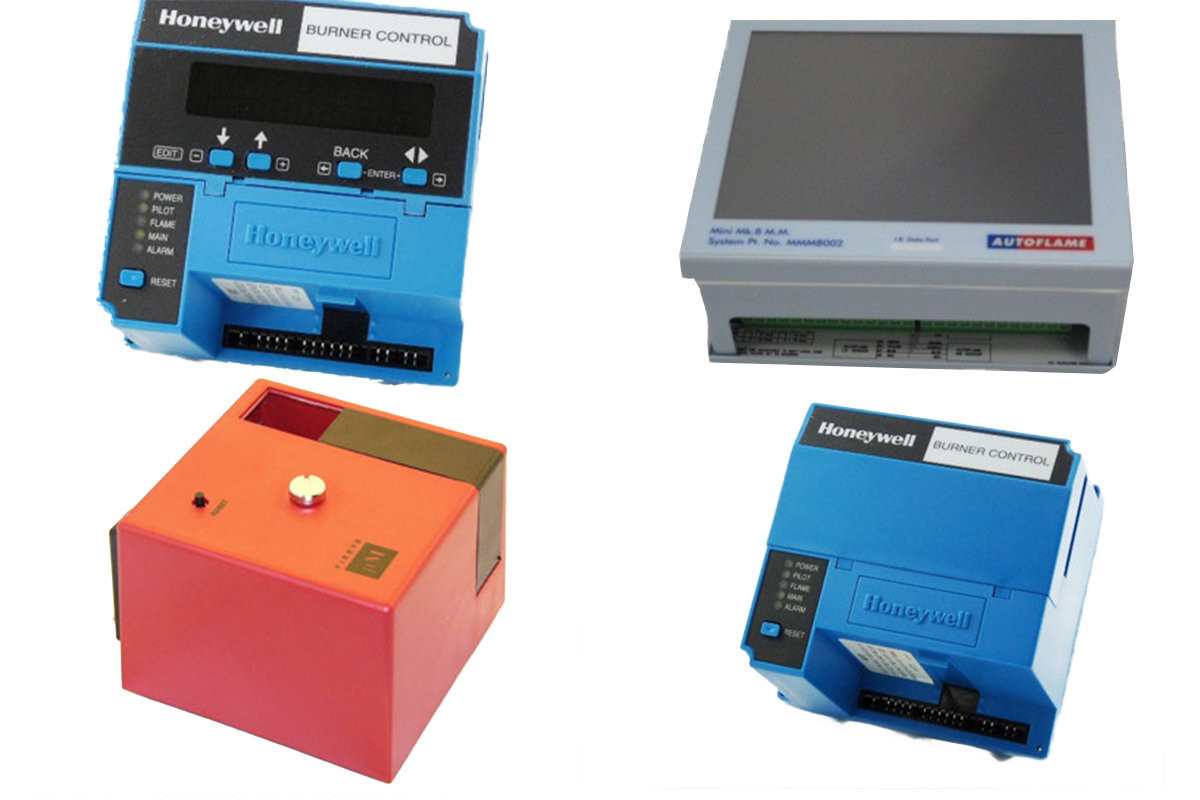

Controllers monitor the incoming signals from the amplifier, and use them to confirm proper burner firing. They then adjust the burner accordingly, to either increase, decrease, or extinguish the flame.

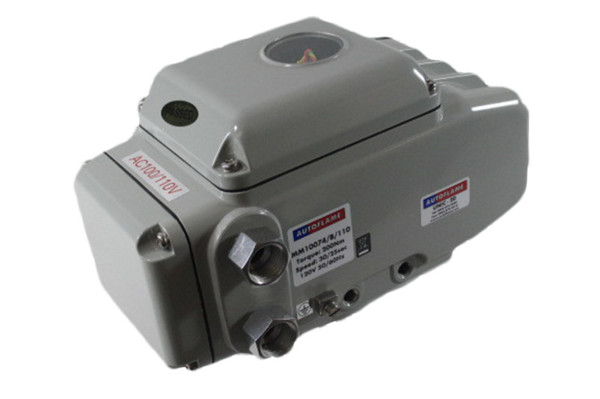

Servo Motors are actuated by signals from the boiler controller, making adjustments to the burner’s valve position and fuel supply to as needed during startup, regular operation, and shutdown.

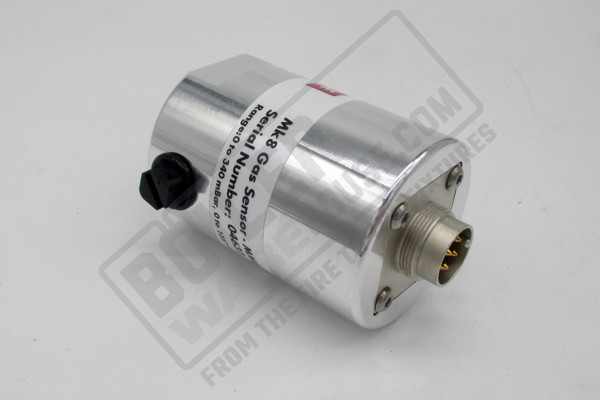

Gas Pressure Sensors confirm that fuel is flowing at the correct pressure during every stage of boiler operation.

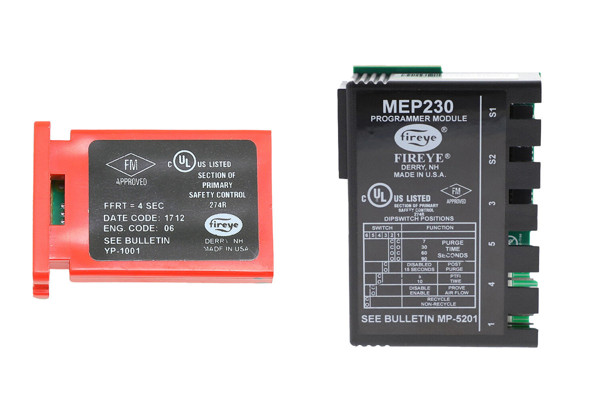

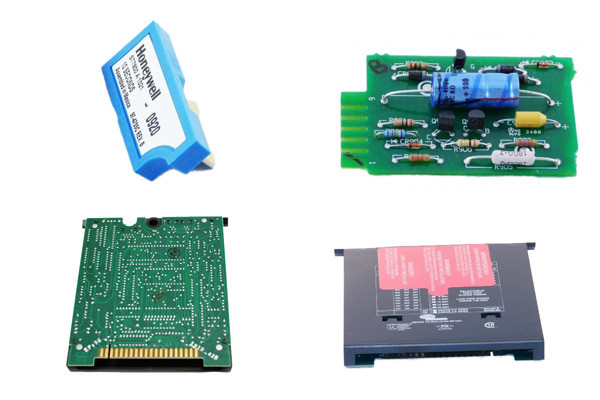

Purge Timers and Programmer Modules are circuit boards installed into the boiler’s control system that control the parameters of the combustion cycle, including the amount of time a boiler’s purge cycle stays on.

The Role Flame Safeguard Controls Play In A Boiler

Fuel should never be introduced into a boiler unless there’s a sustained flame to consume it, or an ignition spark to light it. By detecting the light and/or heat emitted by the boiler’s flame, the flame safeguard controls confirm proper combustion, preventing unburned fuel from building up and creating an explosion hazard.

Flame safeguard controls also confirm that the burner shuts down when it’s supposed to.

What Are The Effects Of Flame Safeguard Controls?

If any part of a flame safeguard control fails, the burner will not be monitored and controlled properly. This will cause a change in boiler performance elsewhere in the system, such as increased temperatures or lost steam production. Though most systems include automatic checks of all electronic equipment, visual verification of combustion is always a safe practice.

Things To Consider About Flame Safeguard Controls:

  • Regular flame safeguard control cleaning and calibration are required for proper operation.
  • Make sure your flame scanners are kept clean, because any distortion by soot or residue may cause inaccurate readings or false negatives.
  • Make sure your flame safeguard control system is set up with compatible, properly calibrated components.
  • Many controllers can use more than one type of flame scanner, so be sure yours is set correctly.
