Ignition Transformers

The ignition transformer for a boiler is a crucial piece of equipment to create the spark for combustion. BoilerWAREhouse carries different types of transformers that can meet your needs.

If you do not see the part you want below, feel free to use the chat function and see if we possibly have the part you are looking for in stock.

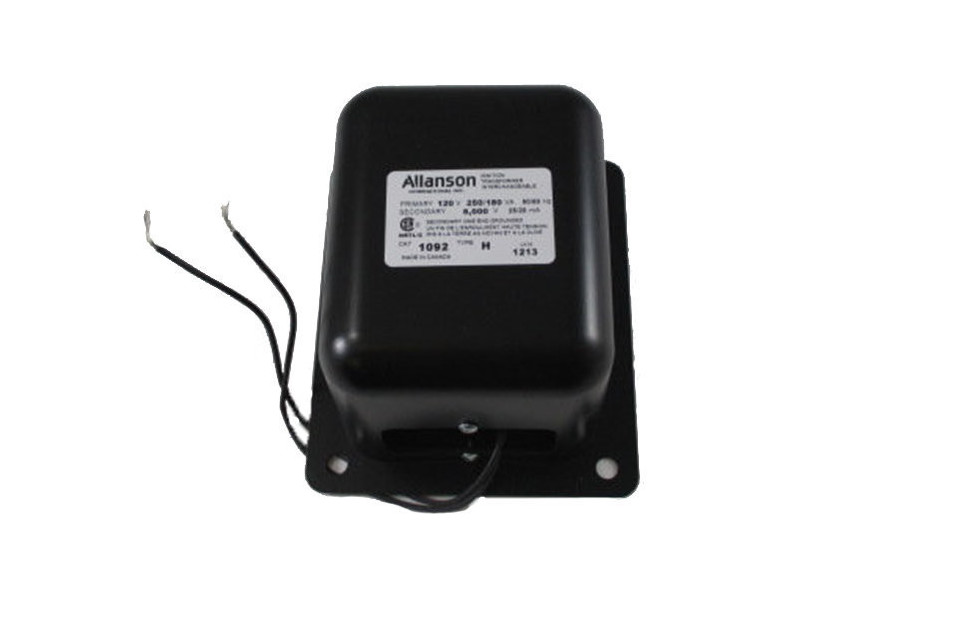

Allanson Boiler Ignition Transformer

Ignition Transformers Categories

What is an Ignition Transformer & What is its function?

An Ignition Transformer helps keep the fire lit.

Safe boiler startup and combustion require a safe method of ignition. To make sure the fuel ignites quickly and efficiently, ignition transformers help create a powerful spark of electricity.

Different Types of Ignition Transformers & How to Choose

For boilers that do not use solid-state electronic ignitors, ignition transformers are used to step up incoming voltage to ensure sufficient spark arcs across the electrodes. They typically step up to one of two voltages, depending on the specs of the boiler.

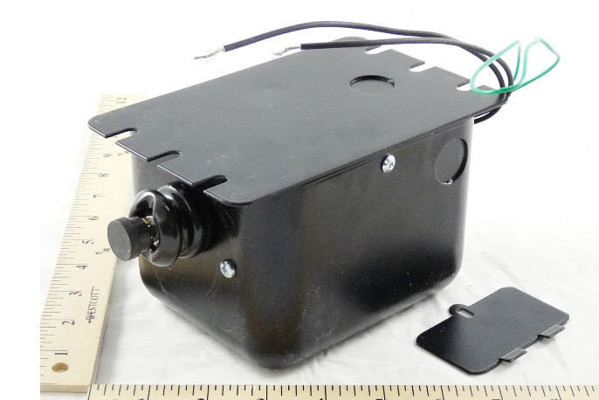

  • 6,000-Volt Transformers step up the supply voltage to 6,000 volts

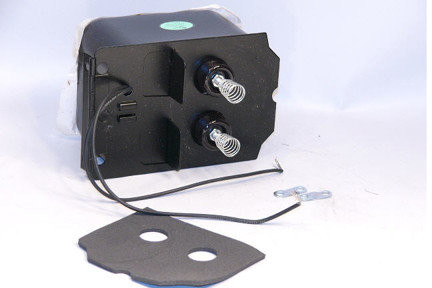

  • 10,000-Volt Transformers step up the supply voltage to 10,000 volts

The Role an Ignition Transformer Plays in a Boiler

A boiler needs a reliable source of ignition to operate safely. If the incoming fuel is not properly ignited at startup, or during boiler firing, it can collect and create an explosion hazard. Ignition transformers step up the incoming voltage using copper coils around an iron core to generate a larger, more consistent spark across the ignition gap to ensure the fuel burns.

what is the effect of a bad Ignition Transformer?

When an ignition transformer goes bad, it will stop generating spark. This may cause excess fuel to build up, causing an explosion.

Things to Consider about ignition transformers:

If you hear puffs or excessive rumbles coming from your fire side, you may have a failing transformer.

Helpful Resources

Relevant WARE Videos on Ignition Transformers

Propane to Light the Pilot for a Rental Boiler

Different Types of Boiler Burner Pilots

Must have Spare Boiler Parts

Water Condensation on Boiler Startup

Explore over 750+ explanatory videos on boilers and boiler systems on our Youtube channel. Our videos can help you quickly grasp complex boiler topics. Watch more here!

Relevant WARE Blog Articles on Ignition Transformers

Ignition Transformers: More Than Meets the Eye

Monitoring Your Boiler Room

What Parts to Keep On-Hand at All Times

Having Issues with Your System? Check These Common Boiler Issues First

Monthly Boiler Maintenance Means Safe, Efficient Operation

Boiler Tuning: Striking the Perfect Air/Fuel Mixture

Cleaning the Burner's Flame Sensor

Our informative and educational blog content can help you gain a deeper understanding of the boiler room. Read more here!

Technical Documents

Rental Contingency Plan

Formulas and Measurements

Ignition Transformer FAQ

How do I test my ignition transformer?

The best way to test it is to safely apply power to it and see if a spark is created across the electrodes. You can also listen to hear if the electrodes are arcing properly.

What’s the difference between ignition transformers and electronic ignition systems?

Ignition transformers step up voltage by using a series of copper coils wound around an iron core. Electronic, or solid state, ignitors use electronic circuitry to generate the necessary voltage.

Does the ignition transformer stay on during the entire firing cycle?

It depends on the design of your boiler. Some boilers keep power supplied to the ignition transformer during the entire firing cycle. Some only use intermittent spark pulses to ensure the fuel stays properly ignited.
