Gas valves are important safety devices that ensure proper gas shut off to your burners. When the burner control calls for cease of operation and shuts the burner down, the gas valves should close and make sure no more fuel enters into the combustion chamber. They can be motorized, hydraulic, or even solenoid type valves. We offer brands in ITT/ASCO, Siemens, and Maxon.

If you do not see the part you want below, feel free to use the chat function and see if we possibly have the part you are looking for in stock.

Boiler Gas Valves and Actuators

What are Gas Valves and Actuators & What is their function?

Gas valves and actuators keep fuel flowing safely

Gas valves and actuators work together to regulate the flow of natural gas or propane entering the burners of a boiler’s furnace. They make sure the boiler has fuel when it needs it, and that the supply shuts off completely when fuel isn’t needed.

Gas valves and actuators turn the fuel on, off, and in between

The fuel flowing into a boiler has to be carefully controlled to make sure combustion stays consistent, even, and safe. Gas valves and actuators control the flow of fuel together.

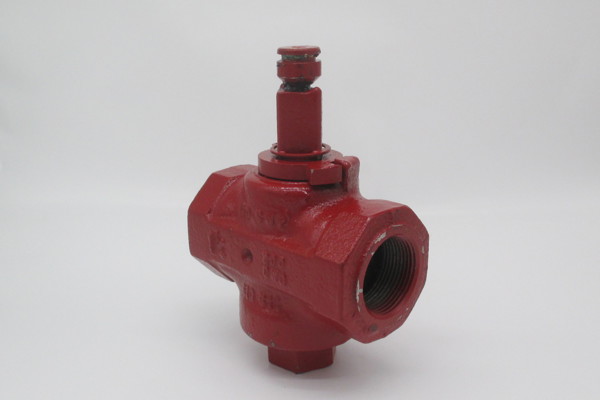

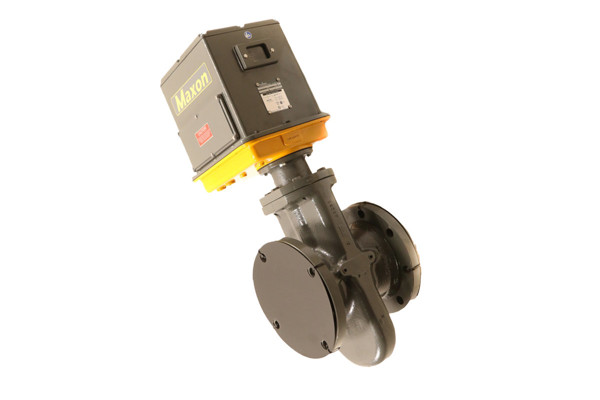

Gas Valves are used to turn the flow on and off.

Valve Bodies modulate the flow during the firing cycle as the boiler calls for more or less fuel.

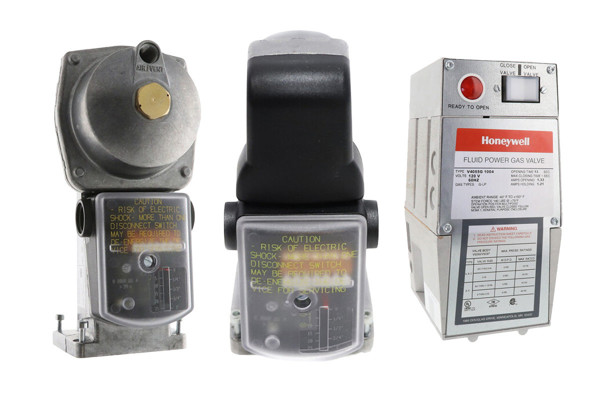

Actuators are motors or servos that physically turn the valves or adjust the valve bodies based on input from the boiler control system.

Different Types of Gas Valves and Actuators & How To Choose

Actuators can be:




The Role Gas Valves and Actuators Play in a Boiler

Gas valves and valve bodies make sure that the proper amount of fuel flows when it needs to, and that the fuel supply is cut off completely when the boiler isn’t firing. Gas valves can be manually operated, for example at the utility supply line, or they can be integrated into a boiler’s control system.

If a boiler is automatically controlled, the actuators act as the “hands” of the boiler control system, turning the gas valves on and off and adjusting the valve bodies for safe, efficient operation.

what are the Effects of Bad Gas Valves and Actuators?

If a gas valve or valve body starts to fail, the supply of fuel will be incorrect for proper firing.

The boiler will either be starved of fuel, or it will run too rich. The flow of fuel might even continue after shutdown, which can be extremely dangerous.

A failing actuator will not move the valve or valve body when and where it’s supposed to. This can create poor performance, low steam production, or a dangerous fuel leak.

Things to Consider about gas valves and actuators:

  • Gas valves and actuators can be physically attached to each other directly (parallel positioning), or they can be joined by a linkage.
  • If they use a linkage, it’s important to check it for slack regularly to make sure the valve is actually where the actuator says it should be.
