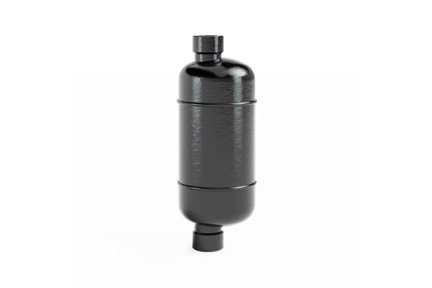

401SH - 3/4" Socket Weld, 5/64 Orifice, 1,000 PSI, Inverted Bucket Trap (Superheat)

To survive this most severe steam service, Armstrong created an inverted bucket trap with a unique accumulation chamber. The chamber collects sufficient condensate to ensure full discharge cycles. A cup in the chamber floats up and down on the steam inlet tube, sealing it off as the condensate level rises.

At the same time as the chamber collects condensate, steam continues to flow under the bucket, making sure that the discharge valve closes tightly until the condensate rises into the trap body and the bucket falls down. The operation is on/off, no throttling or dribbling. In addition, you get all the familiar benefits of an inverted bucket steam trap.

Details:

• Maximum capacity: 800 lb/hr (363 kg/hr)
• Maximum allowable pressure (MAP) : 1000 PSIG @ 800° F (69 bar @ 427° C)
• Maximum operating pressure (MOP) : 1000 PSIG (69 bar)
• Maximum allowable temperature: 800° F (427° C)
• Connection type: socket weld
• Connection size: 3/4"
• Orifice size: 5/64
• Body material: Carbon Steel ASTM A106 GR. B
