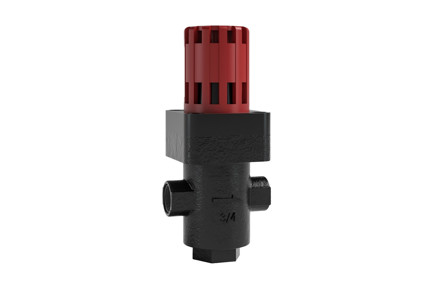

GD30 - 3/4" NPT, 7 - 60 PSI, Direct-Acting Pressure Reducing Valve

The GD-30 is a compact, high-performance direct-acting valve. Economical to buy and use, it is ideal for those low- to moderate-flow applications where accuracy of +/- 10% is acceptable. The GD-30 is well suited for laundry and dry-cleaning equipment, hospital equipment, tire molds, humidifiers, small heaters and applications in food processing. It provides tight shutoff for dead-end service on steam.

Details:

• Maximum allowable pressure (MAP) : 250 PSIG (17 bar)
• Maximum operating pressure (MOP) : 60 PSIG (4 bar)
• Maximum allowable temperature: 410° F (210° C)
• Connection type: screwed
• Connection Size: 3/4"
• Reduced pressure range: 7 - 60 PSIG (0.48 - 4 bar)
• Pressure reducing valve type: direct-acting
• Body material: ASTM B584 bronze
