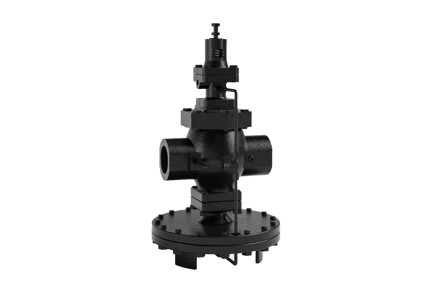

GP-2000R - 2" 150RF, 3-21 PSI, External Pilot, Back Pressure Reducing Valve

The GP-2000R is a high-performance externally piloted throttling back-pressure valve for large capacity steam applications. Typical applications include systems using flash steam for low-pressure heating or processes. The GP-2000R valve will function to maintain a constant upstream pressure. This valve is not a safety valve and should not be used for that purpose.

Details:

• Maximum allowable pressure (MAP) : 200 PSIG (14 bar)
• Maximum operating pressure (MOP) : 185 PSIG (13 bar)
• Maximum allowable temperature: 450° F (232° C)
• Connection type: 150RF
• Connection Size: 2"
• Reduced pressure range: 3 - 21 PSIG (.21 - 1.4 bar)
• Pressure reducing valve type: external pilot, diaphragm operated
• Body material: ASTM A536 ductile iron
