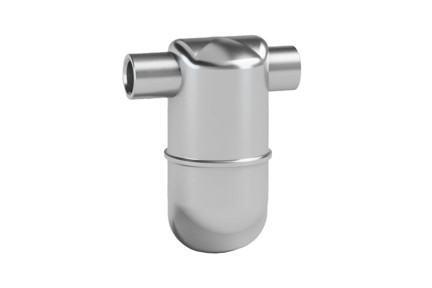

1811 - 1/2" NPT, 7/64" Orifice, 200 PSI, Inverted Bucket Trap with Probe Connection
More about this product
Details:
- Equipped with probe connection
- Maximum Capacity: 1,020 lb/hr (463 kg/hr)
- Maximum allowable pressure (MAP) : 400 PSIG @ 800°F (28 bar @ 427°C)
- Maximum operating pressure (MOP) : 200 PSIG (14 bar)
- Connection type: screwed
- Connection size: 3/4″ (20 mm)
- Orifice size: 5/32"
- Steam trap type: inverted bucket
- Body material: ASTM A240 Grade 304L stainless steel
-
Product Downloads
-
Manufacturer Info
Armstrong
