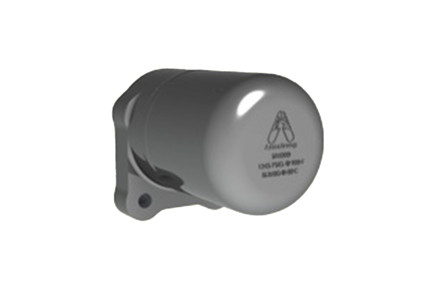

SH4009H - Four-Bolt, 900 PSI, Bi-Metallic Superheat Steam Trap

SH-4000 Series Bimetallic Steam Traps are the ideal design for applications involving superheated steam. During start-up, the bimetallic mechanism is fully open and allows large volumes of non-condensable gases and condensate to be removed from the system. As the system reaches saturated steam conditions, the mechanism begins to close preventing any live steam loss. The superheat during normal operating steam conditions keep the valve closed to ensure long service life.

The SH-4000 Series consists of an investment cast, stainless steel body that is compact and highly resistant to harsh, corrosive environments. The integral mounting flange is compatible with the Armstrong IS-4, 4-bolt, Class 900, connector making for labor savings and easy steam trap replacement.

Details:

• Maximum capacity: 6,000 lb/hr (2,722 kg/hr)
• Maximum allowable pressure (MAP) : 1,245 PSIG @ 900° F (86 bar @ 482° C)
• Maximum operating pressure (MOP) : 900 PSIG (62 bar)
• Connection type: four-bolt
• Steam trap type: bi-metallic steam trap
• Body material: ASTM A-351 Gr. CF8M stainless steel
