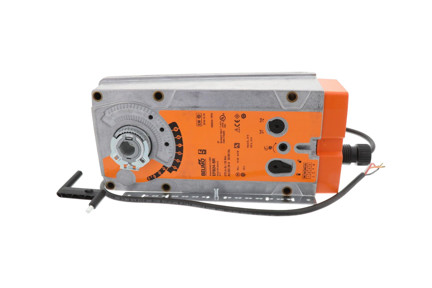

EFB24-SR - 24V, Spring Return, 270 in-lb, Motor Actuator

Details:

• Spring return damper actuator
• Nominal voltage: 24V AC/DC
• Power Consumption (Holding): 4.5 W
• Power Consumption (Running): 8 W
• Nominal frequency: 50/60 Hz
• Torque: 270 in-lb (30 Nm)
• Angle of rotation: 30 to 95°, adjustable with mechanical end stop
• Running time: 95 seconds
• NEMA 2 enclosure
• Ambient temperature range: -22° to 122° F (-30° to 50° C)
