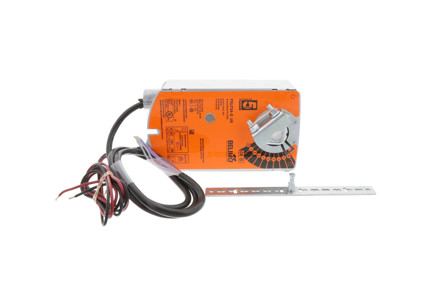

FSLF24-S - 24V, 30 in-lb, Fire & Smoke Actuator with Aux

The type FSLF spring-return actuator is intended for the operation of smoke and combination fire and smoke dampers in ventilation and air-conditioning systems. The actuator will meet requirements of UL555 and UL555S when tested as an assembly with the damper and will meet requirements of UBC for 15 second opening and closing.

Details:

• Fire and smoke actuator
• Dual auxiliary switch
• Nominal voltage: 24V AC/DC
• Power Consumption (Holding): 2.5 W
• Power Consumption (Running): 15VA
• Nominal frequency: 50/60 Hz
• Torque: 30 in-lb (3.5 Nm)
• Angle of rotation: Max 95°
• Running time: 15 seconds
• NEMA 1 enclosure
• Ambient temperature range: 32° to 122° F (0° to 50° C)
