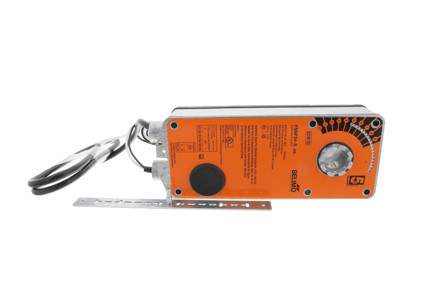

FSNF24-S - 24V, 70 in-lb, Fire & Smoke Actuator with Aux

The FS series of spring-return actuators are designed for the operation of UL555 and UL555S listed fire/smoke dampers in ventilation and air-conditioning systems.

Details:

• Fire and smoke actuator
• Dual auxiliary switch
• Nominal voltage: 24V AC/DC
• Power Consumption (Holding): 3 W
• Power Consumption (Running): 27VA
• Nominal frequency: 50/60 Hz
• Torque: 70 in-lb (8 Nm)
• Angle of rotation: 95°
• Running time: 15 seconds
• NEMA 1 enclosure
• Ambient temperature range: 32° to 122° F (0° to 50° C)
