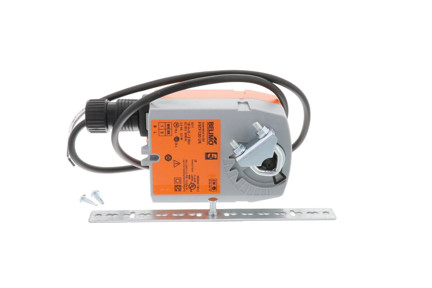

FSTF120 - 120V Fire and Smoke Actuator

The FS series of spring-return actuators are designed for the operation of UL555 and UL555S listed fire/smoke dampers in ventilation and air-conditioning systems.

Details:

• Fire and smoke actuator
• Nominal voltage: 120V AC
• Power Consumption (Holding): 1.5 W
• Power Consumption (Running): 2W
• Nominal frequency: 50/60 Hz
• Torque: 18 in-lb (2 Nm)
• Angle of rotation: 95°
• Running time: 75 seconds
• NEMA 2 enclosure
• Ambient temperature range: 32° to 122° F (0° to 50° C)
