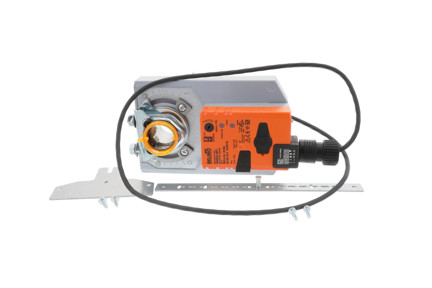

GMB24-MFT - 24V, Rotary, 360 in-lb, On/Off Actuator Motor

The actuator is not provided with and does not require any limit switches, but is electronically protectedagainst overload. The anti-rotation strap supplied with the actuator will prevent lateral movement.The actuator provides 95° of rotation and a visual indicator indicates position of the actuator. Whenreaching the damper or actuator end position, the actuator automatically stops. The gears can bemanually disengaged with a button on the actuator cover. The actuators use a brushless DC motor, which is controlled by an Application Specific Integrated Circuit(ASIC). The ASIC monitors and controls the actuator’s rotation and provides a digital rotation sensing(DRS) function to prevent damage to the actuator in a stall condition. Power consumption is reduced inholding mode.

Details:

• Non-spring return actuator
• Nominal voltage: 24V AC/DC
• Power Consumption (Holding): 1.5 W
• Power Consumption (Running): 4.5 W
• Nominal frequency: 50/60 Hz
• Torque: 360 in-lb (40 Nm)
• Angle of rotation: Max 95°, adjustable with mechanical stop
• Running time: default 150 seconds, variable 75 to 300 seconds
• NEMA 2 enclosure
• Ambient temperature range: -22° to 122° F (-30° to 50° C)
