More about this product

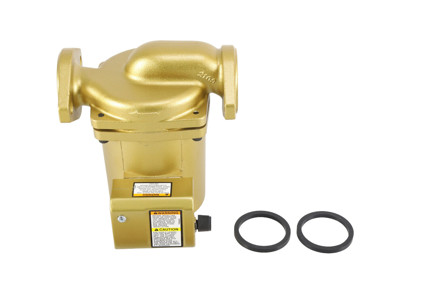

The Bell & Gossett Bronze Fox series NBF-36 is a bronze body, in-line, wet rotor circulator pump engineered for water circulating applications in hydronic and solar systems. It features a 1/6 HP, single-phase motor with a maximum operating pressure of 150 PSI.
Details:
General Specifications
- Bronze body construction
- Lead free construction for use in potable water systems
- Maximum working pressure: 150 PSI
- Temperature range: 40° to 230° F (5° to 110° C)
- MPN # : 103401LF
- Model # : NBF-36
- Weight: 9.30 lbs
Pump Specifications
- Pump connection: 1/2", 3/4" union
- Pump type: wet rotor circulator
- Pump mounting: in-line
- Ceramic shaft
Motor Specifications
- Motor HP: 1/6 HP
- Motor RPM: 2940 RPM
- Motor voltage: 115V
- Motor wattage: 92 Watts
- Motor amperage: 0.80 Amps
- Motor phase: 1 phase
-
Product Downloads
-
Manufacturer Info
Bell & Gossett
