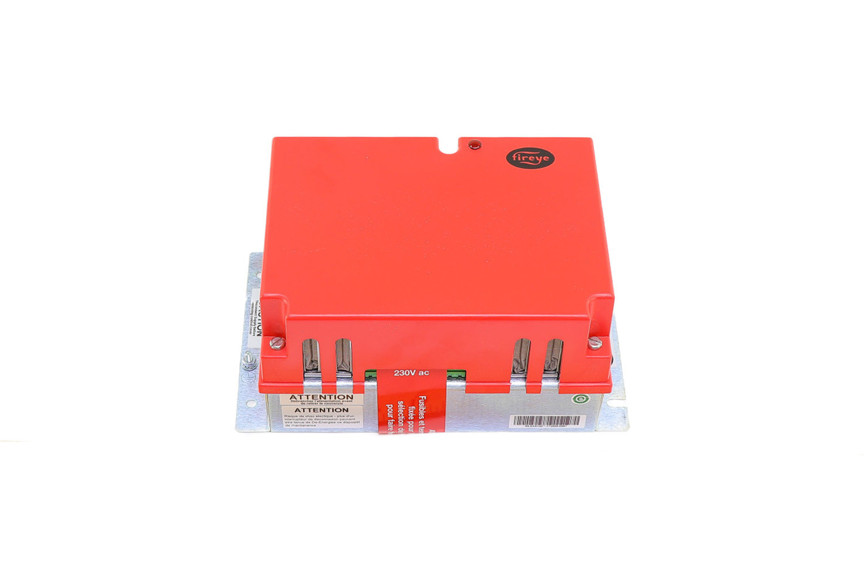

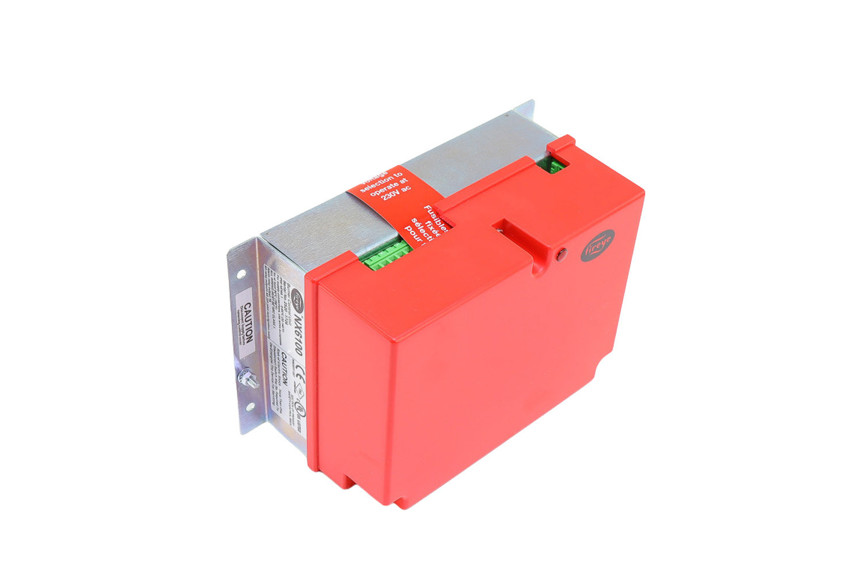

Fireye NX6100 - Parallel Positioning Control

The Fireye NEXUS NX6100 is an advanced, microprocessor-based flame safeguard and parallel positioning combustion controller, engineered for industrial burner management. This compact, user-configurable system integrates the controller, display, sensors, servo-motors, and optional Comfire software for seamless operation.

Details:

• Comprehensive Flame Safeguard: Provides burner sequencing, safe start checks, valve closure proof, selectable gas safety proving, supervised pre-purge, ignition trials, flame supervision, and post-purge. Meets North American and CE safety standards.
• Versatile Flame Detection: Supports UV, UV self-check, and infrared sensors for reliable monitoring of common fuels. Compatible with Fireye Phoenix and Insight scanners for specialty applications.
• Flexible Inputs & Diagnostics: Seven low-voltage and two line-voltage auxiliary inputs for safety and control, plus a robust menu of alarm messages for enhanced diagnostics.
• Precision Parallel Positioning: Controls up to four independent profiles, each with up to 10 servo-motors, enabling accurate fuel and air metering across the burner’s firing range. Secure CANbus communication ensures reliable operation and safety lockout if position or speed limits are exceeded.
• Configurable Profiles: Define up to 24 positions per profile, including closed, purge, ignition, low fire, and 20 intermediate points for optimal combustion control.
