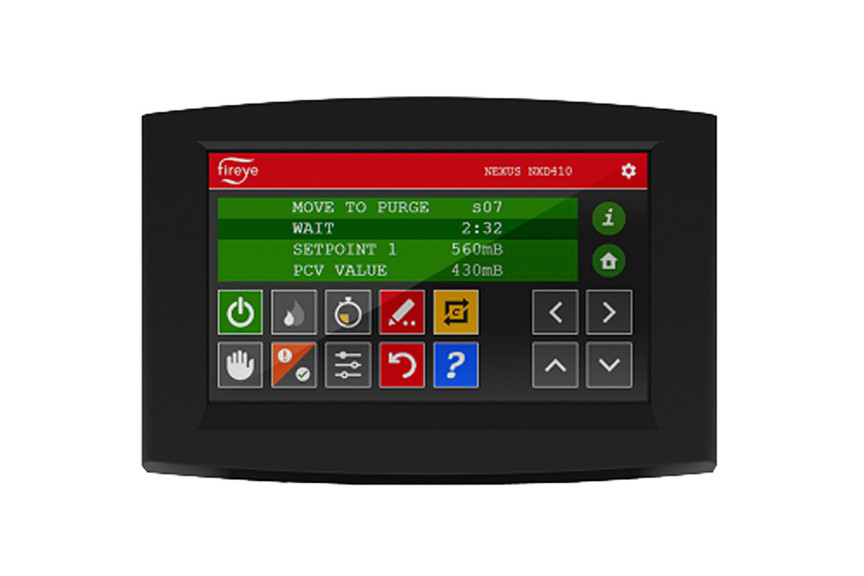

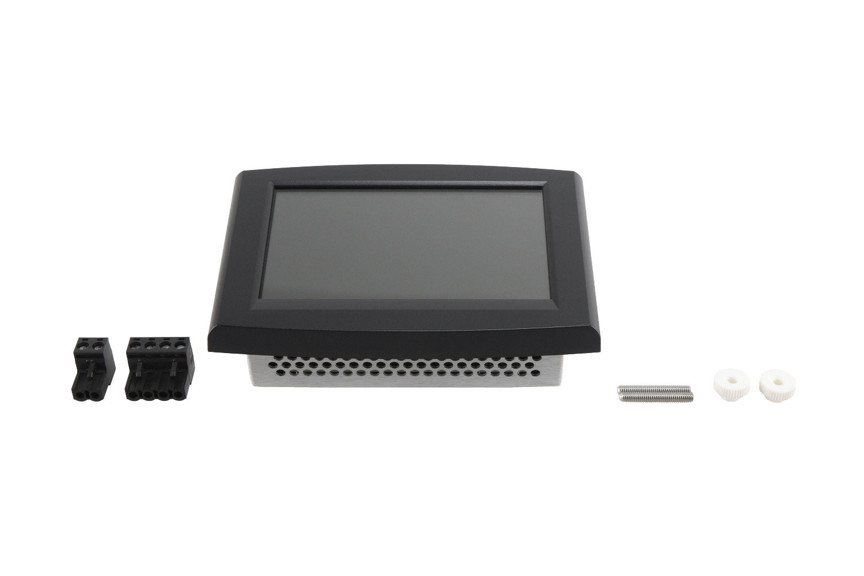

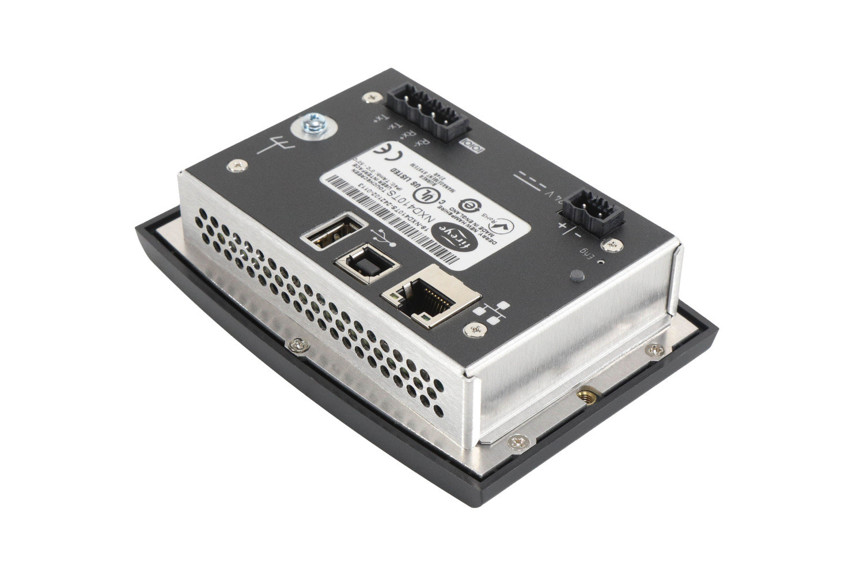

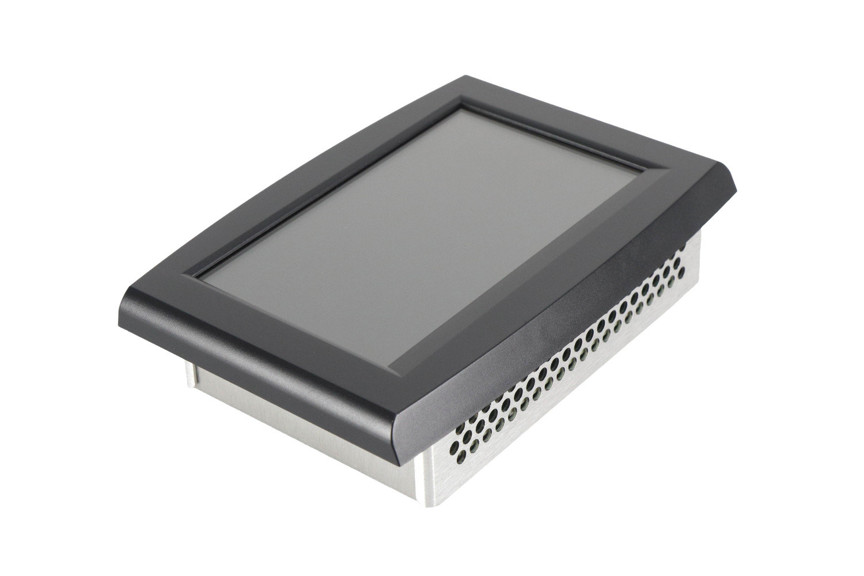

Fireye NXD410TS - Touchscreen Display Interface

The NXD410TS provides the means to setup, monitor and display information from the NXF4000 and PPC4000 series of controls as well as any connected accessories. It provides a full touchscreen interface for monitoring, configuration and commissioning. The NXD410TS touchscreen is panel mounted and connects to the NXF4000 or PPC4000 control using a serial communication cable.

Details:

• Interface method: Terminal mode via RS-422
• Nominal voltage: 24 VDC ± 20%
• Nominal power consumption: 0.21A @ 24VDC (5W)
• Operating temperature range: 32°F to +122°F (0°C to +50°C)
• Storage temperature range: -22°F to +176°F (-30°C to +80°C)
• Humidity: 5% to 85%, non-condensing
• IP40 rating (Indoor use only)
• Diagonal screen size: 4.3"
• Resolution: 480 x 272
