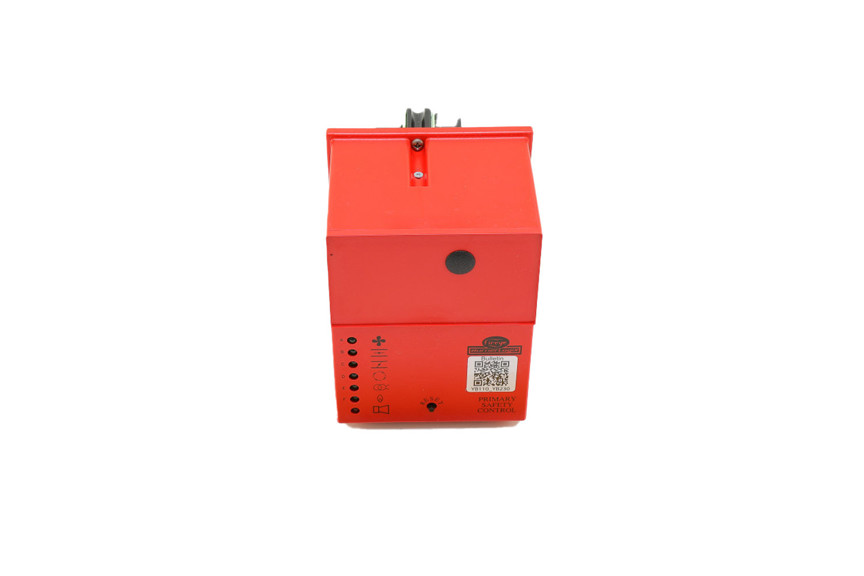

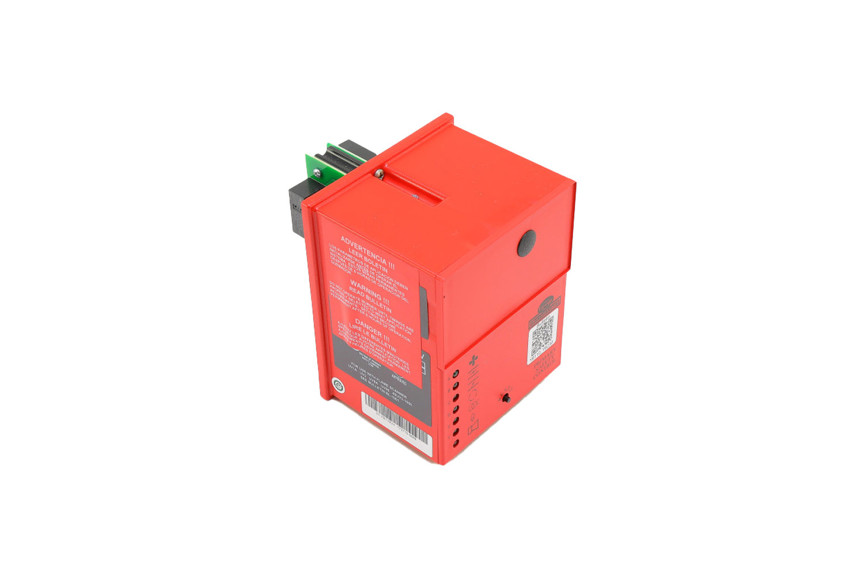

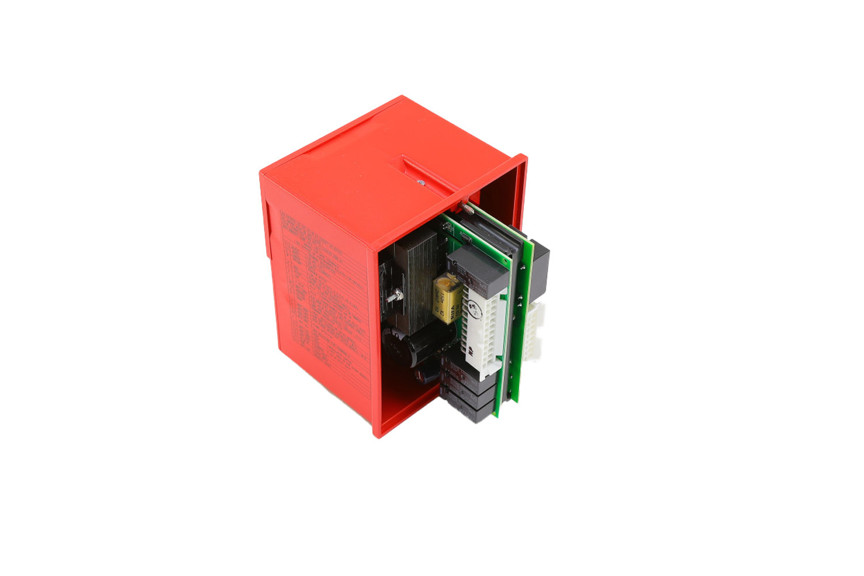

Fireye YB110UVSC - Chassis with UV Self Check Amplifier (120V)

The Fireye BurnerLogix™ System is a microprocessor based burner management control system designed to provide the proper burner sequencing, ignition and flame monitoring protection on automatically ignited oil, gas, and combination fuel burners.

Details:

• A non-volatile memory allows the control to remember its history and present position even when power is interrupted
• A consistent flame signal read-out via display module or 4-20 mA output
• Read-out of main fuel operational hours and complete cycles via display module
• Modbus communications via RS485 multi-drop link
• Proof of fuel valve closure during the off cycle
• Burn-in time of program parameters occurs after 8 hours of main valve on time
• A run/check switch allows the operator to stop the program sequence in any of four different positions (Purge, PTFI, MTFI or Auto)
• Remote display mounting with NEMA 4 protection
• Remote reset
• Programmable communication baud rate allows for DCS compatibility
• Keypad selectable language readout
• Revert to pilot can increase burner turn down
• Additional terminals provided for applications requiring additional inputs and outputs
