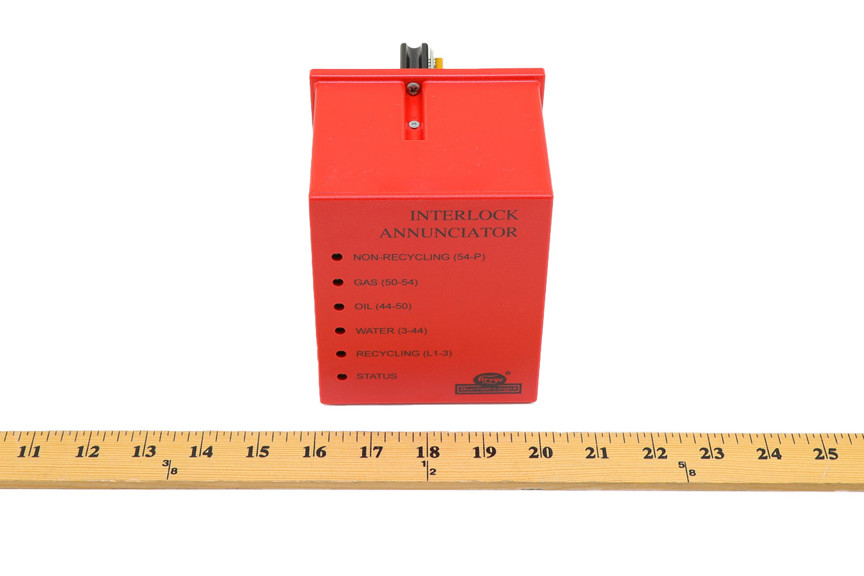

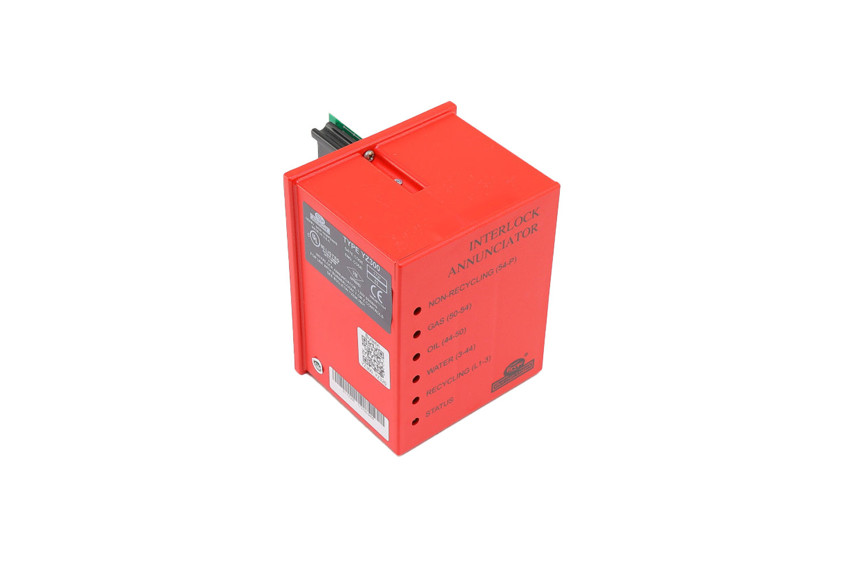

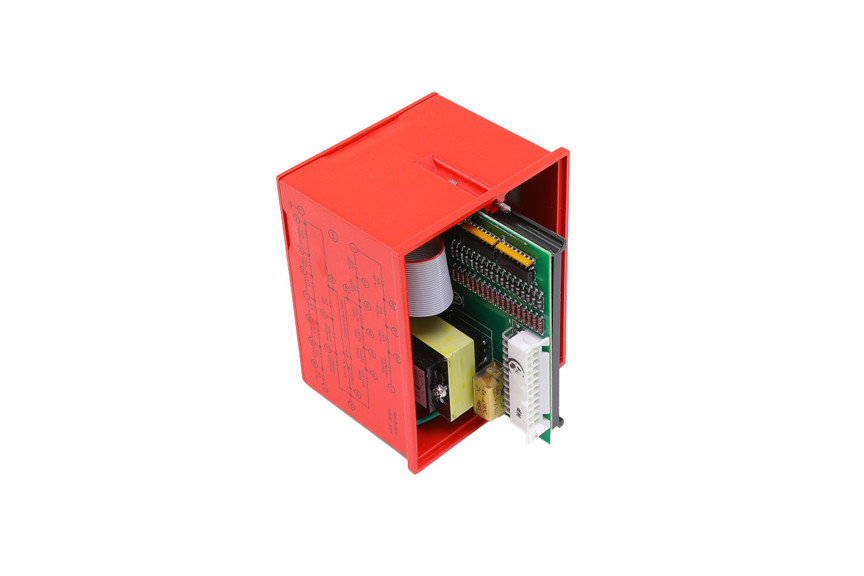

Fireye YZ300 - Interlock Annunciator (120V)

The YZ300 Interlock Annunciator Module is designed to expand the capability of the BurnerLogix System by allowing the operator to individually track the operation of four recycling interlocks and sixteen running interlocks (non-recycling).

The Interlock Annunciator Module connects to any YB110 (YB230) or ZB110 (ZB230) BurnerLogix chassis/amplifier by means of a cable, (ED580-2, ED580-4, ED580-8).

By wiring any of twenty interlock switches into the Interlock Annunciator Module, the BurnerLogix display automatically acts as a “first-out” annunciator for these interlocks.

Details:

• Does not interfere with the normal operation of the BurnerLogix system
• Expands the message and diagnostic capability
• Ability to modify these lockout messages
• Temperature range: -40° to 140° F (-40° C to 60° C)
