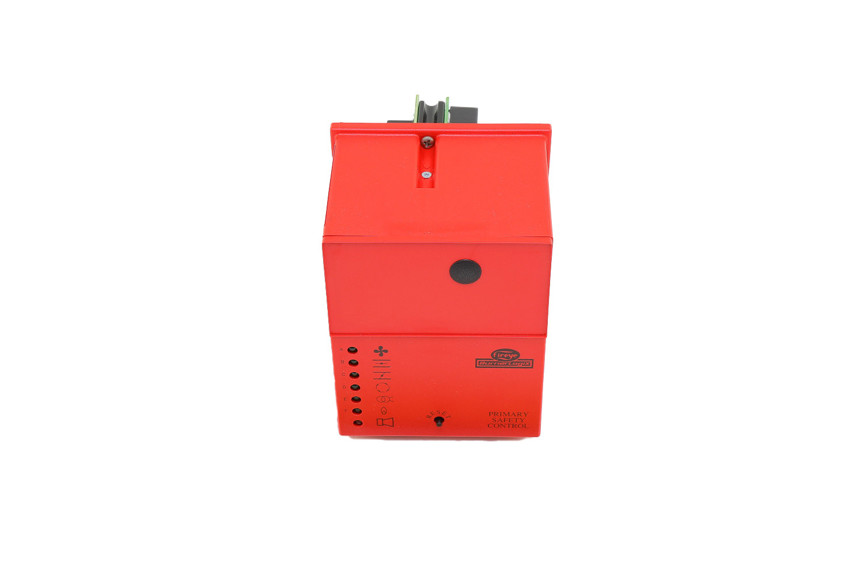

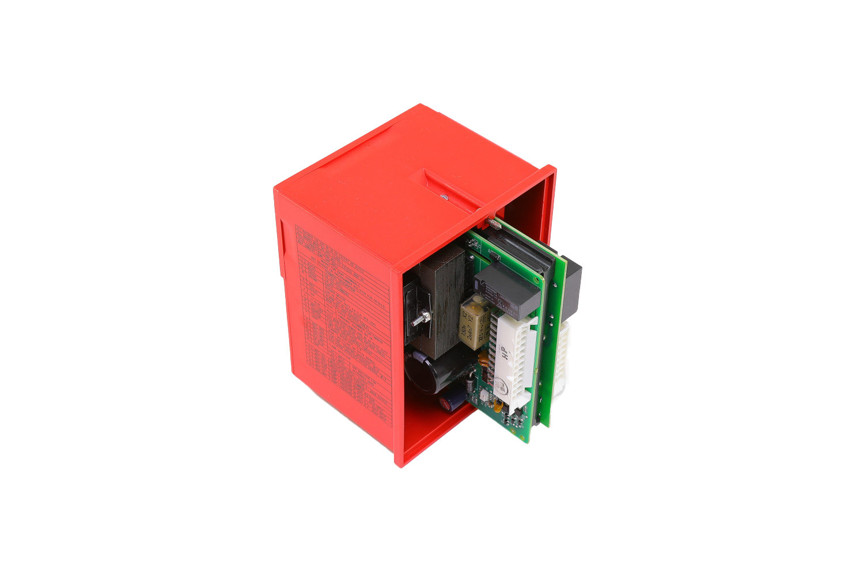

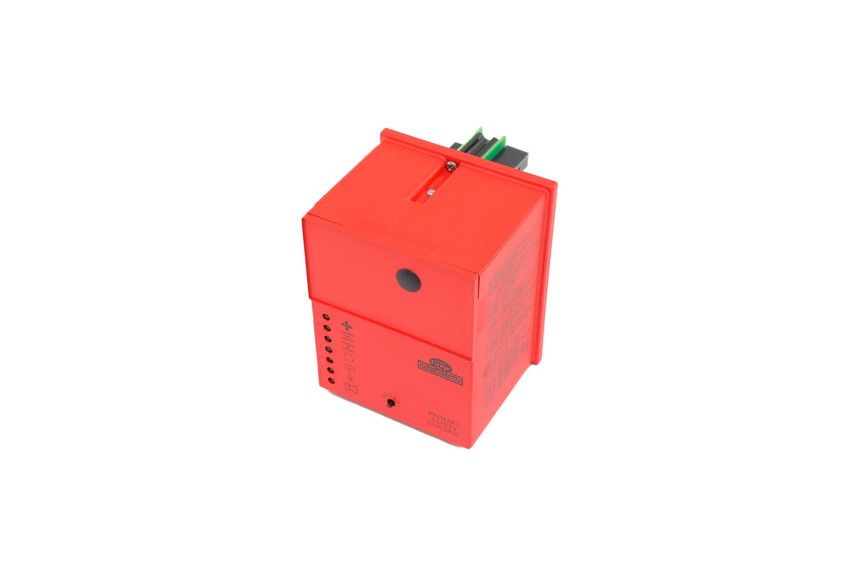

Fireye ZB110UV - Chassis UV Amplifier (120V)

The Fireye ZB110UV is a chassis and flame amplifier module designed for use with the BurnerLogix Z burner management control system. It provides essential burner sequencing, ignition, and flame monitoring protection for automatically ignited oil, gas, and combination fuel burners. The ZB110UV features a UV (ultraviolet) non-self-check amplifier, ensuring reliable flame detection in industrial combustion systems.

Details:

• 120 VAC input with UV non self-check amplifier
• For use with UV1A, UV2, UV8A, UV90, 45UV3-1050 flame scanner
• 120 VAC (+10%, -15%) 50/60 Hz
• -40° to 140°F to -40° to 60° C
• Operating Control Function for automatic sequencing of the boiler system to start and stop the boiler to meet system demand.
• Full Modulation Control of fuel and combustion air through the firing rate motor to meet system demand.
• Solid State Sensors to monitor steam pressure, water temperature, stack temperature, boiler water temperature, or outdoor air temperature.
• High Pressure and Temperature Alarm Limits based on inputs from solid state sensors. Exceeded limits will open interlock circuit to the flame safeguard control for shutdown of the burner and boiler.
• Cold Start Thermal Shock Protection to slowly increase the burner firing rate on a cold start to limit mechanical stress due to thermal differences.
• Multiple Lead/Lag operation of two or more boilers.
• User-friendly keypad display system in either VFD or LCD format featuring the all-info display mode, program and review of system setpoints and operating parameters.
• Remote Communication Capability allows reading and writing of all setpoint information.
• Password Protected Parameters (two levels of security) to restrict unauthorized entry and modification of system setpoints and operating parameters.
