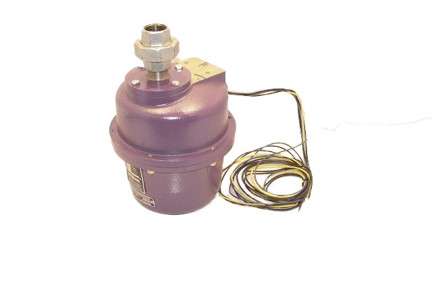

C7012F1052 - 1" NPT, 120V Self-Checking UV Purple Flame Detector (X-Proof)

Details:

• Housing designed to be explosion-proof and Underwriters Laboratories Inc. listed for use in hazardous locations; Class I, groups C and D; and Class II, groups E, F, and G.
• UltraViolet Flame Detector
• For use with gas, oil, or coal fired burners
• For use with Flame Safeguard Controls using Rectification (R7247A, R7289A, R7847A1082) and Ampli-Check Rectification (R7247B, R7847B1072) Flame Signal Amplifiers
• Connection type: screwed
• Connection size: 1"
• Viewing window pressure rating: 100 PSI
• 120 VAC
• 96" lead wires
• Temperature range: -20° to 175° F (-29° C to 79° C)
