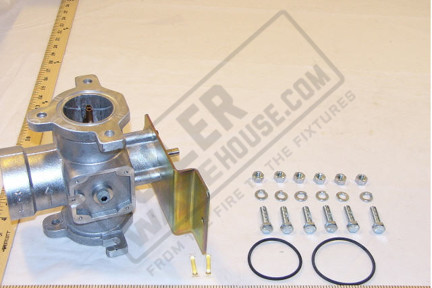

3/4", 2-Way, Normally Closed, Butterfly Valve

The V5197A is a firing rate valve used to provide variable flow control of air, natural gas, liquefied petroleum (LP), and manufactured gases. The V5197A is actuated by a firing rate motor that can be mounted directly on the valve. It is not applicable as a safety shutoff valve.

The V5197A is specially designed to provide fine control of gas flow in applications where a high turn down ratio is required. The maximum flow adjustment screw on the bottom of the valve allows adjusting the maximum flow of gas through theV5197 while maintaining the linear modulating characteristics and stroke. The V5197A is part of the Honeywell Integrated Valve Train System that allows gas train components to be directly bolted together.

Details:

• Used with air, natural, manufactured or liquefied petroleum (LP) gases
• For modulating applications that do not require final shutoff service of firing rate valve
•  Small body type for 3/4", 1", 1-1/4", 1-1/2" and 2" pipes, NPT or ISO 7 threads
• Two downstream 1/4 in. NPT threaded pressure taps available
•  Accepts C6097 Pressure Switch mounted directly to flange (downstream pressure tap only)
•  Unpainted cast aluminum body
•  Suitable for electric or pneumatic operators with the appropriate linkage
• May be used with manufacturers own linkage and drive moto
• Flow adjustment screw on bottom of valve controls maximum flow
• Visual position indicator
• Maximum operating pressure: 15 PSI
• Ambient operating temperature rating: -40° F to 150° F (-40° C to 66° C)
