More about this product
BLACK-MAX® gaskets, made from foil-reinforced, exfoliated graphite, stand up to extreme pressure and offer leak-free performance even on rough, pitted surfaces. The multiple layers of exfoliated graphite foil and 316 stainless steel foil insure gasket stability. Suitable for use in environments ranging from extreme cold at -400°F to high-temperature steam conditions up to 1,200°F.
Details:
- 12" x 16" x 1-1/4" elliptical manway gasket
- Proprietary graphite that is chemically inert (pH 0 -14) and resistant to chemicals used in treating boiler water
- Removal is easy and requires no scraping, chiseling or grinding - resulting in lower maintenance costs and less downtime
- Temperature: up to 1,200° F (650° C) in steam boilers
- Temperature: -400° F to 850° F (-240°C to 454° C) in atmosphere
- Pressure: Up to 2,000 PSIG (70 bar)
- M Factor: 2 (Smooth Flange Surface)
- Y Stress: 900 PSI (6MPa) (Smooth Flange Surface)
- Max Gasket Load = 24,000 PSI (165 MPa)
-
Product Download
-
Manufacturer Info
OG Supply
Customers Also Bought
-
OG Supply
BLACK-MAX - 3" x 4" x 1/2" Elliptical Hand Hole Gasket
- SKU:
- BMG3004005025
-
OG Supply
BLACK-MAX - 3-1/4" x 5" x .562" Elliptical Hand Hole Gasket
- SKU:
- BMG3255005625
-
OG Supply
BLACK-MAX - 3-1/2" x 4-1/2" x 1/2" Elliptical Hand Hole Gasket
- SKU:
- BMG3504505025
-
OG Supply
BLACK-MAX - 3" x 4'' x 1/2" Obround Hand Hole Gasket
- SKU:
- BMG3004005025OB
-
OG Supply
BLUE-MAX - 4" x 6" x 1" Elliptical Hand Hole Gasket
- SKU:
- BMT4006001025
-
OG Supply
BLACK-MAX - 3-1/4" x 4-1/2" x 1/2" Obround Hand Hole Gasket
- SKU:
- BMG3254505025OB
-
OG Supply
BLACK-MAX - 11" x 15" x 1-1/4" Elliptical Manway Gasket
- SKU:
- BMG1101501225
-
Crown Engineering

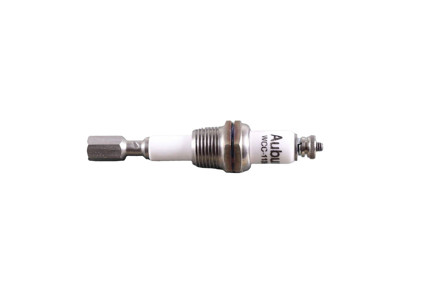

LIQUID LEVEL ELECTRODE AUBURN
