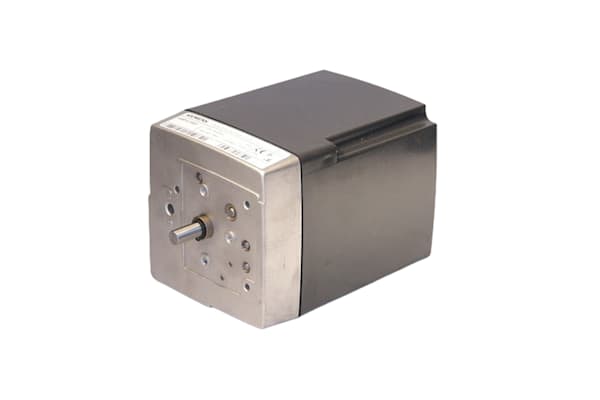

SQM10.16561 CCW Actuator - 110V, 90°/29s, 130°/42s, 15Nm

The Siemens SQM1 series modulating actuators deliver precision control for industrial burner systems, offering reliable performance, high torque output, and seamless integration with fuel-air ratio control applications. Ideal for demanding environments, these actuators ensure accurate positioning and long-term durability.

Details:

• Nominal torque: 10 Nm (based on 150,000 position changes)
• Starting torque: 15 Nm
• Holding torque: 7 Nm
• Running time 50 Hz for 90° angular rotation: 29 seconds
• Running time 50 Hz for 130° angular rotation: 42 seconds
• At frequency 60 Hz, running times are about 17 % shorter
• Operating voltage: AC 110 V
• Standard version, 10 mm diameter drive shaft
• Counterclockwise rotation (when facing the driveshaft and with control voltage applied to terminal 1)
• 5 Auxiliary switches
• Operating temperature: -4° to 140° F (-20° to 60° C)
