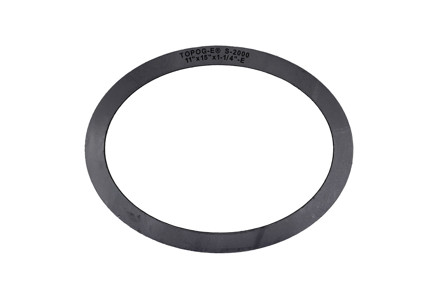

Topog-E S2000 - 11" x 15" x 1-1/4" E Graphite Elliptical Manway Gasket
Next day delivery available - Ships Tomorrow
More about this product
Topog-E 2000 series gaskets can be used as a cost-effective sealing alternative in most types of higher pressure industrial vessels and tanks that have inspection openings. The proprietary graphite used to manufacture these gaskets gives them exceptional thermal stability combined with chemical inertness, ensuring superior service capability under simultaneous conditions of saturated and superheated steam. They provide boiler manufacturers, users and service companies handhole and manhole gaskets with unprecedented characteristics.
Details:
- 11x15x1-1/4 series S2000 graphite elliptical manway gasket
- Reinforced exfoliated graphite foil
- Temperature: up to 636° F (336° C) in steam boilers
- Temperature up to 850° F (454° C) in atmosphere
- Pressure: 250 - 2,000 PSIG (17 - 138 bar)
- M Factor: 2 (Smooth Flange Surface)
- Y Stress: 900 PSI (6MPa) (Smooth Sealing Surface)
- Max Gasket Load = 24,000 PSI (165 MPa)
-
Product Download
-
Manufacturer Info
Topog-E
