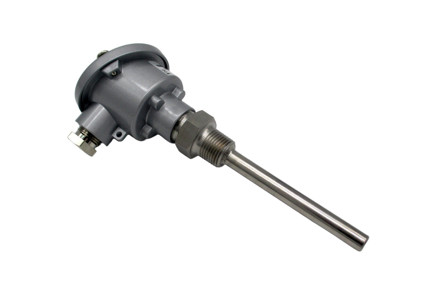

Autoflame Temperature Sensor

Autoflame temperature sensor is a resistance type temperature detector for use with the MM system.

Details:

• Measures load temperature
• Monitoring the exhaust temperature or the coil/tube temperature of the boiler on the Mk8 MM
• Heat flow metering applications on the Mk8 MM
• Fully metered combustion applications on the Mk8 MM
• Exhaust temperature shutdown threshold on the Mk8 MM
• Connection size: 1/2" NPT
• Temperature range: 0° to 752° F (0° to 400° C)
• Maximum pressure rating: 580 PSI (40 bar)
• IP65, NEMA 4
• PG11 cable gland
• Operating temperature range: -13° to 185° F (-25° to 85° C)
