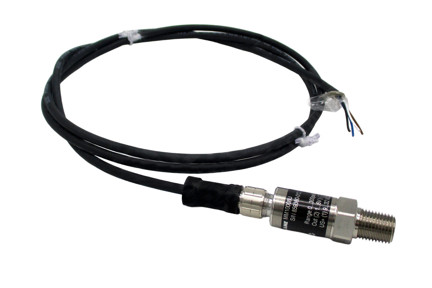

Autoflame Steam Pressure Sensor 0-300 PSI

Autoflame Steam Pressure Sensor can be used with the MM system for the purpose of measuring the steam (load) pressure.

Details:

• Pressure range: 0-300 PSI
• Connection size: 1/4" NPT tapered
• IP65, NEMA 4 rated
• 1.5m (5ft) prewired with inside waterproof protective conduit
• Operating temperature range: -13° to 185° F (-25° to 85° C)
• Media temperature range: -13° to 257° F (-25° to 125° C)
