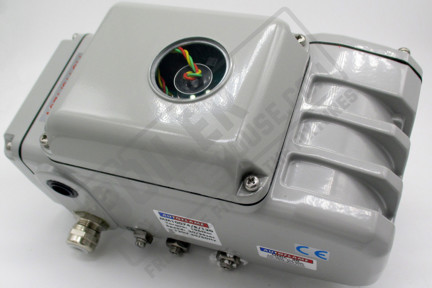

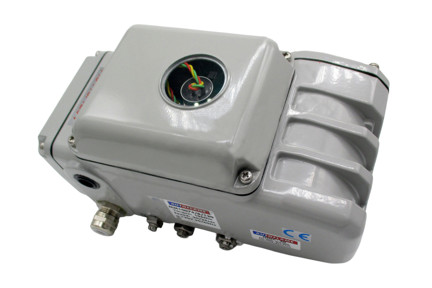

Autoflame Industrial UNIC20, 120V, 200 Nm Servo Motor

The industrial servomotor is a rotary type electric actuator for use with the MM systems. The UNIC servomotors can be used for air dampers and water valves.

Details:

• UNIC20
• Output torque at shaft: 200 Nm (148 ft lbs)
• Supply voltage: 120 VAC
• Operation angle: 0.0° to 90°
• Accuracy: Up to 0.5°, 180 positions available
• Frequency: 50/60 Hz
• Operating temperature range: -13° to 131° F (-25° to 55° C)
• IP65, NEMA 4 die cast aluminum (ADC) housing
• Wiring connection: 2 x 1/2" BSPP (male) to 1/2" NPSM (female)
