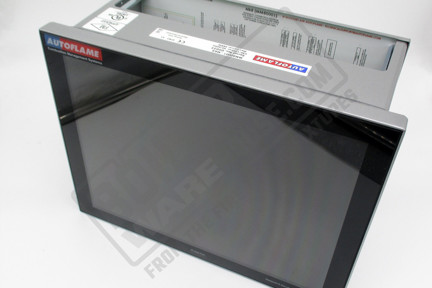

The Mk8 MM controller is a micro-modulating system that offers comprehensive control over industrial and commercial boiler/burners.

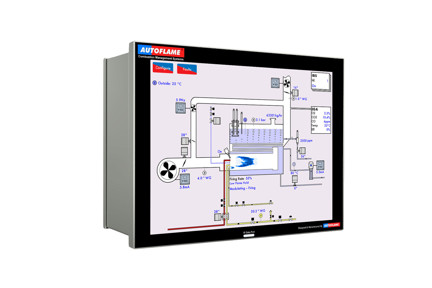

With the Mk8 MM, it is possible to control all boiler processes from a single 12.1" multi-touch screen interface without any added module. It is ideal for steam and water boilers (watertube or firetube), kilns and steam generators. Designed for oil, natural gas or both fuel, the MM features linkageless servomotor system and automated flame safeguard create conditions for unmanned boiler house.
Details:
- 12.1" full color touch screen
- 6-Channel burner management system
- Controls up to 5 servomotors and 2 variable speed drives (VSD/VFD)
- Fully adjustable PID load control
- Fuel changeover on the fly (COF)
- Fully metered, cross-limited control
- Intelligent boiler sequencing (lead/lag)
- Internal flame safeguard (self-check UV or IR)
- Gas valve train leak supervision
- First out annunciation (15 inputs)
- Password protection
- Direct modbus connectivity
- 1000 entry system log & 24-hour history
- Bluetooth / IR data transfer
- Fully modulating feedwater control
- Automatic bottom & top blowdown control
-
