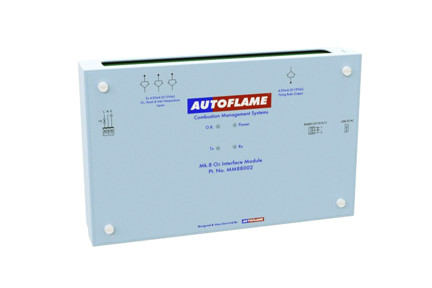

Autoflame MK8 O2 Interface

The Mk8 O2 Interface Module is intended for use with the Mk8 MM and Mini MK8 MM. The O2 Interface Module can only measure the O2 reading from the stack, the module is also capable of extrapolating CO2 value from the O2 sensor reading.

The Mk8 O2 Interface Module is not compatible with the Mk8 DTI so the emission data cannot be logged using the DTI. The O2 interface module provides basic functionality, for advanced exhaust gas monitoring and trim solution it is recommended to use Autoflame Mk8 EGA Evo.

Details:

• Designed for combustion trim (on O2 only), setting up combustion limits, exhaust gas temperature monitoring, and boiler efficiency
• Supply voltage: 120V / 230 VAC
• IP20, NEMA 1 rating
• RS485 communication
• Operating temperature range: 23° to 140° F (0° to 60° C)
