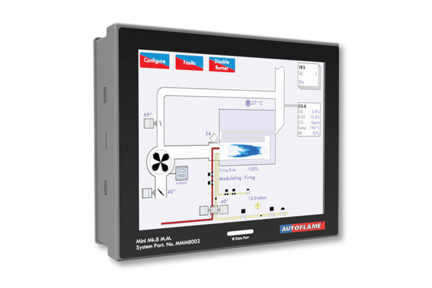

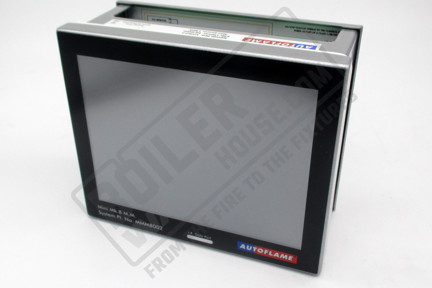

Autoflame Mini MK8 Evolution Module

The Mini Mk8 is Micro-Modulating system that provides an easily programmable and flexible means of optimizing combustion throughout the load requirement range of the boiler/burner.

This control module encompasses all the functions required for reliable burner management. Built into this system is a fully automated flame safeguard and valve proving system, MODBUS connectivity, and a touchscreen interface.

This system ensures the burner temperature is accurate to within 1° C/F and pressure to within 1 PSI. The positioning accuracy of the direct drive motors controlling the air damper and fuel valve is 0.1° throughout the load range. This accuracy ensures repeatable fuel-to-air ratio that leads to improved fuel economy and reduced carbon footprint.

Details:

• Fuel/Air ratio control
• Full color touch screen
• 120V or 230V Standard operation 50/60Hz
• Controls up to 3 servomotors and 1 variable speed drive (VSD/VFD)
• 2 independent fuel programs
• Fully adjustable PID load control for temperature or pressure
• Internal flame safeguard - full flame supervision with self-check UV, IR and ionization
• Gas valve train leak supervision and high/low gas pressure monitoring
• Air pressure proving and monitoring
• 64 Lockouts/errors stored with date, time, phase and reset
• System log stored with date, time and status
• Single point change function for adding, removing and adjusting fuel/air positions on the commission curve
• User definable optimum ignition position - golden start
• User definable flue gas recirculation start position
• Variable servomotor travel speed
• Adjustable burner control safety times
• External voltage load control
• Outside temperature compensation of boiler setpoint
• Second setpoint with run times
• Hand/auto/ low flame hold
• Various boiler load detectors available
• Fuel flow metering capability - instantaneous and totalized
• Password protection of all safety related functions
• Infra-red port for upload/download of commissioning data
• System will sequence hot water boilers or steam boilers via lead/lag distribution
• Fully adjustable user options within the system to tailor sequencing operation to the application
• System control for isolation of valves or pumps (2 port valve operation)
• Standby setpoint and warming for lag boilers via a standby pressure and timing sequence aqua-stat
• Download all commissioning data from an MM module to a PC via Download Manager
• Upload commissioning data from a PC to an MM module via Download Manager
