Autoflame Flame Safeguard

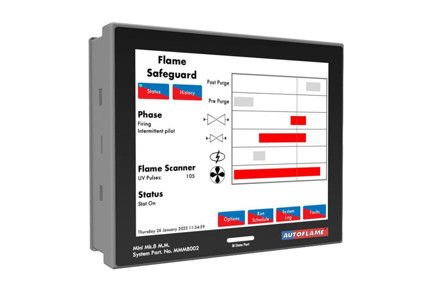

The Autoflame Flame Safeguard unit or MMM8002/FSG is a version of the Micro-Modulating system that provides an easily programmable and flexible means of providing the flame safeguard aspects of controlling a boiler/burner.

This control module encompasses all the functions required for reliable flame safeguard management. Built into this system is a fully automated flame safeguard and valve proving system, MODBUS connectivity, and a touchscreen interface.

This system monitors the flame safeguard, as it checks on the flame of the burner from the use of a UV, Ionization, or IR Scanner.

Details:

• Full color touch screen
• 120V or 230V Standard operation 50/60Hz
• 2 independent fuel programs
• Internal flame safeguard - full flame supervision with self-check UV, IR and ionization
• Gas valve train leak supervision via digital input (T82)
• Air pressure proving and monitoring via Air switch
• 64 Lockouts/errors stored with date, time, phase and reset
• System log stored with date, time and status
• Adjustable burner control safety times
• Password protection of all safety related functions
• Infra-red port for upload/download of configuration data
• Fully adjustable user options within the system to tailor operation to the application
• Download all commissioning data from an Autoflame Flame Safeguard unit to a PC via Download Manager
• Upload commissioning data from a PC to an Autoflame Flame Safeguard unit via Download Manager
• Direct Modbus for communication to BMS or remote monitoring and control
• On-board diagnostics
• System fault alarm output
