More about this product
Market-leading, micro-modulating system, delivering optimized combustion and reliable burner management for connected and safe boiler rooms.
Details:

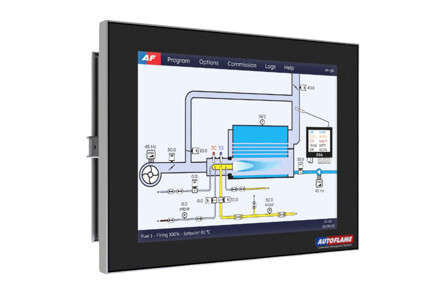

- 8" capacitive touchscreen
- Built-in flame safeguard. Can also be operated as a flame safeguard only system unit
- Fuel-air ration control: automatic, low flame hold, hand mode, enable/ disable burner, stage firing, change on the fly (COF)
- Channels: 3 servos, 1 VSD, 1 PWM fan
- 2 independent fuel curves - dual fuel and COF ready
- Up to 20 interpoints, plus open, closed, golden start, FGR start and purge positions
- Standard, reduced, external, outside temperature compensation (OTC), setpoint programs
- VPS (Gas Valve Proving) available on 2 separate gaseous fuels
- Gas and air pressure monitoring and proving
- Flame scanners: UV, IR, ionisation, flame switch, UV trim, dual scanner options with AND/OR functionality
- 3 Burner control and 1 FAR control-user programmable inputs
- Up to 2 run time schedules & 10 set point programs
- Built-in IBS/Lead lag sequencing
- Instantaneous and totalised fuel flow metering, now possible through 4-20mA mass flow input
- Servo control with configurable FGR start position
- Outside temperature compensation using OTC module or internet weather data
- VFD management: single 4-20mA/0-10V VSD
- PWM fan: direct control with feedback
- Trim control: 3- parameter-trim with an EGA, UV Trim with a UV scanner and EGA/O2 probe
- O2 trim with a third-party O2 probe/analyser
- Emissions monitoring & reporting with a Mk8 EGA EVO
- Unlimited logs for system, lockouts, errors, alarms, and warnings
- Security password protected for commission and online changes
- Commission data backup with wireless connectivity through download manager app
- Connectivity via wireless and ethernet connections
- BMS system control via Modbus or BACnet
- Graphics customisable with several boiler design options
- Language support English (UK &US), Chinese, Spanish + more
- Connectors color-coded plugs for easy wiring
- Upgrade housing aperture same as Mini Mk8 for easy upgrade
- Built-in technical manual
- Approvals: UKCA, CE, UL, AGA, SIL 3
- Options fuel-specific and searchable options
- Up to 3 first out annunciation terminals
- Reduce fuel consumption by 7-12% over traditional linkage systems
- Lower maintenance costs with an accurate positioning system
- Capable of reducing CO2 emissions by 10%
-
