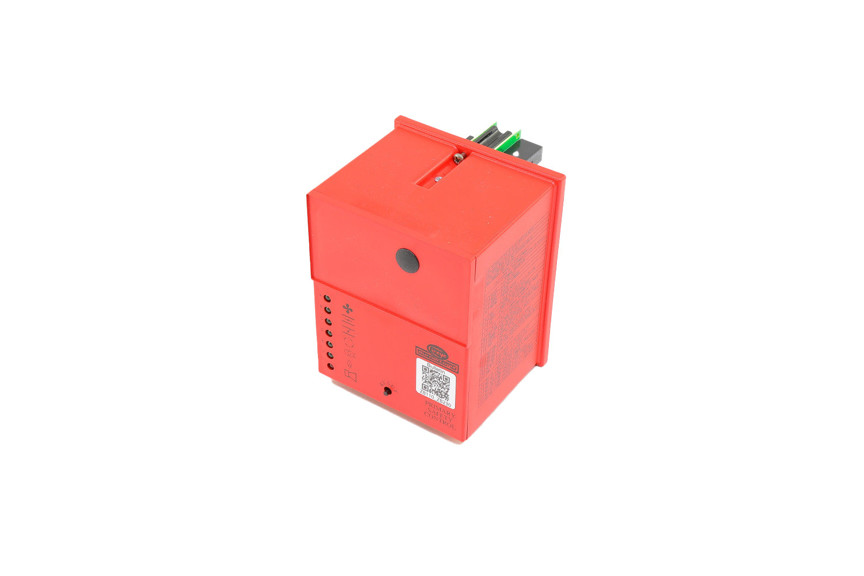

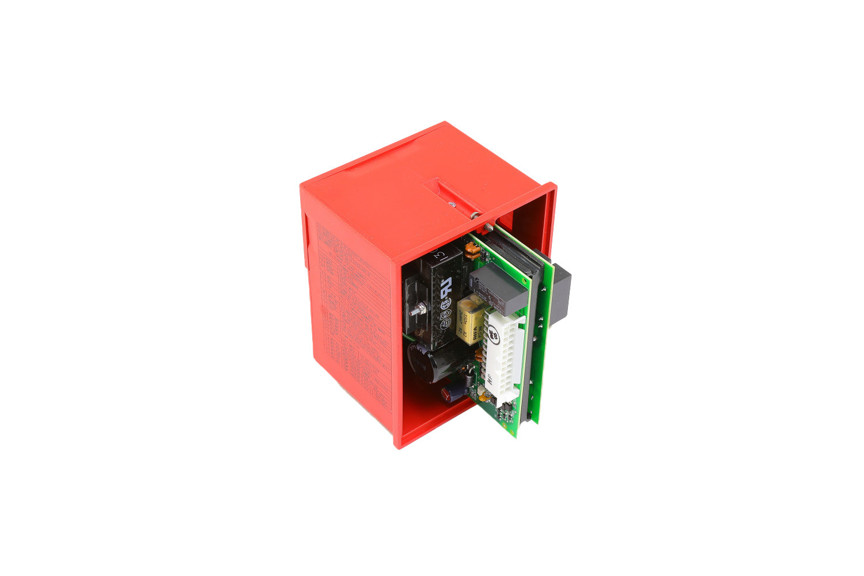

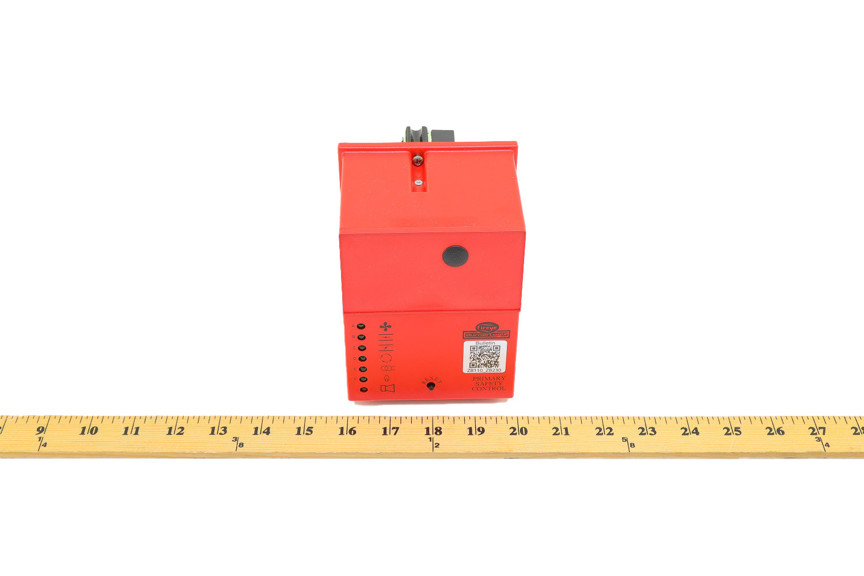

Fireye ZB110IR - Chassis IR Amplifier (120V)

The ZB110 (ZB230) is a chassis/flame amplifier module complete with mounting screws and blank display module. The display module (BLV512 or BLL510), if required, must be ordered separately. Functions such as pre-purge time, recycling or non-recycling interlocks, high fire proving interlock, and trial for ignition timing of the pilot and main flame are determined by the programmer module. The BurnerLogix Z System can be used with ultra-violet, auto check infrared, flame rod, self-check ultraviolet flame scanners or direct coupled by choosing the proper chassis/flame amplifier module.

Details:

• A non-volatile memory allows the control to remember its history and present position even when power is interrupted
• A consistent flame signal read-out via display module or 4-20 mA output
• Read-out of main fuel operational hours and complete cycles via display module
• Modbus communications via RS485 multi-drop link
• Proof of fuel valve closure during off cycle
• Burn-in time of program parameters occurs after 8 hours of main valve on time
• A run/check switch allows the operator to stop the program sequence in any of four different positions (Purge, PTFI, MTFI or Auto)
• Remote Display mounting with NEMA 4X/IP66 protection
• Remote Reset
• Programmable communication baud rate allows for DCS compatibility
• Keypad selectable language readout
• Revert to pilot can increase burner turn down
• Additional terminals provided for applications requiring additional inputs and outputs
