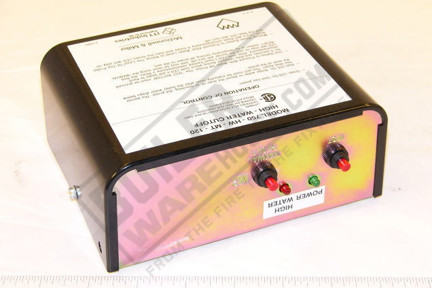

McDonnell & Miller 750-HW-MT-120 - 120V Manual Reset High Water Cut-Off (176236)
Out of stock
Ships in 8-12 weeks if you order today
More about this product
Meets the requirements of ASME Standard CSD-1. If the control is in a low water condition when there is an interruption of power, the control will remain in a low water condition when power is restored. The reset button will need to be pressed when the water level is restored to a level above the probe to allow the burner to fire.
Details:
- 120 VAC
- For commercial or industrial applications
- Primary or secondary control on hot water boilers
- Secondary control on steam boilers
- Green LED indicating power is on
- Red LED indicating low water condition
- Test button
- No lock out with loss of power if probe is in water
- 20,000 ohms sensitivity
-
