More about this product
The Autoflame Data Transfer Interface (DTI) acts as a central communications gateway, aggregating operational and emissions data from MM and EGA products. Using a two-core screened cable network, the DTI periodically polls connected units to store and transmit real-time information to external sources like a Building Management System (BMS) or Energy Management System (EMS) via RS422 and Ethernet (Modbus).
A single DTI manages up to 10 MM modules (MK8 or Mini MK8), 10 MK8 EGA EVOs, and 10 Universal I/O modules for plant-wide status monitoring.
Details:
- Directly supports up to 10 gas and air pressure sensors

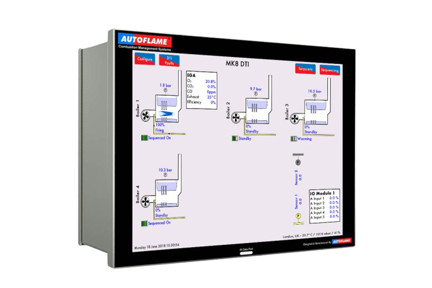

- 12.1" touchscreen provides a live look at communication statuses and diagnostic error alerts
- Using the included DTI Manager software, users can monitor data over a LAN or the internet
- Remote on/off control of the burners can also be achieved as well as the adjustment of the temperature or pressure setpoint and the sequence order
-
Product Download
-
Manufacturer Info
AUTOFLAME Linkageless Controls
