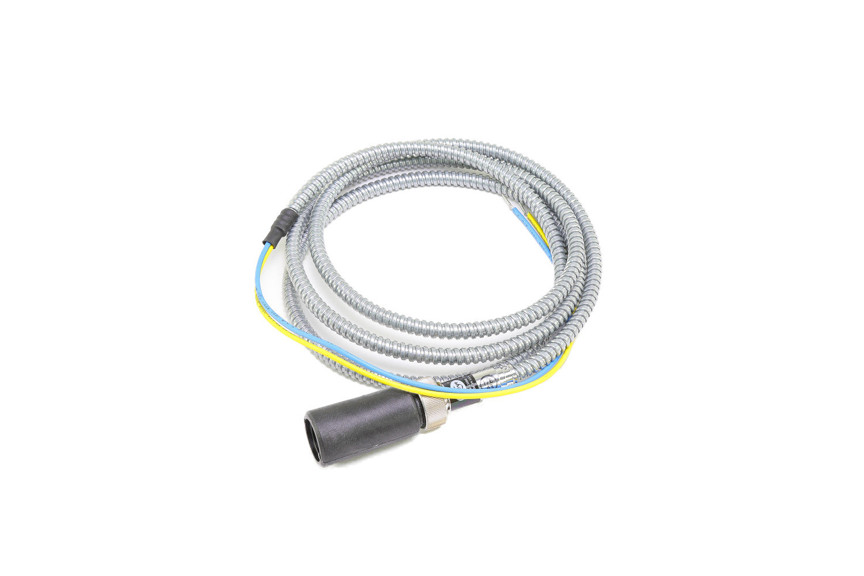

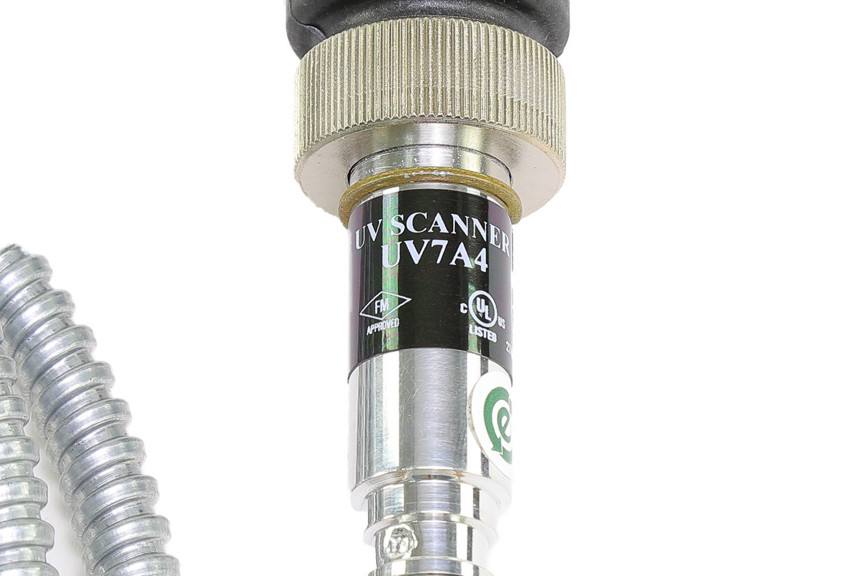

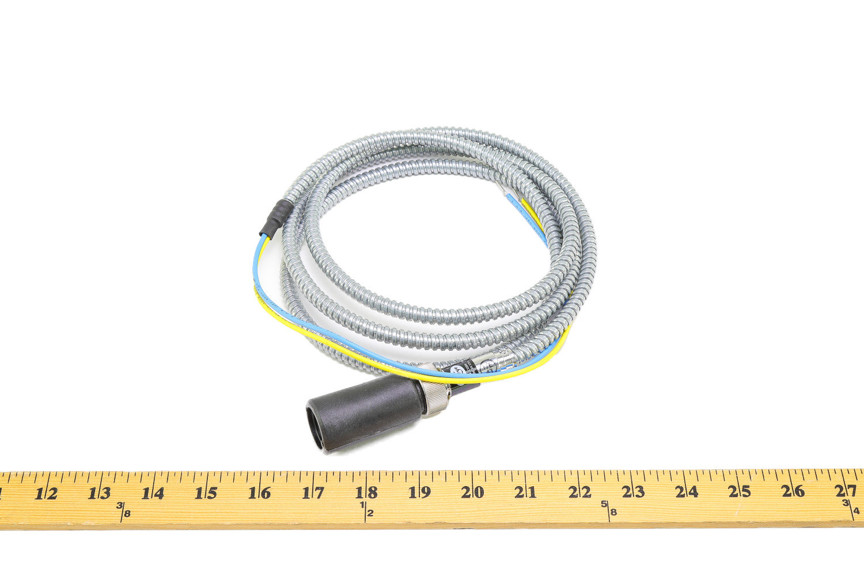

Fireye UV7A4 - 1/2" NPT, UV Flame Scanner with 4 Foot Lead Wires

The UV7A4 scanner features high-sensitivity ultraviolet (UV) detection for monitoring gas or oil flames that cycle on and off frequently. The Fireye flame safeguard checks for a short-circuited or "runaway" scanner at the beginning and end of each flame cycle. UL listed and FM approved, it includes a 122 cm (4 ft.) shielded flexible cable and a 1/2" F.N.P.T. insulated nylon coupling, making it ideal for high-temperature applications.

Details:

• Ultraviolet straight flame scanner
• For use with gas, oil, or coal fired burners
• For use with MB series Multi-Burner control, the SB series single burner control and the flame sensing modules, MBPF-100S and MB-600PF
• Connection type: screwed integral collar
• Connection size: 1/2"
• 425 VDC
• 4 foot lead wires
• Temperature range: -20° to 125° F (-4° C to 257° C)
