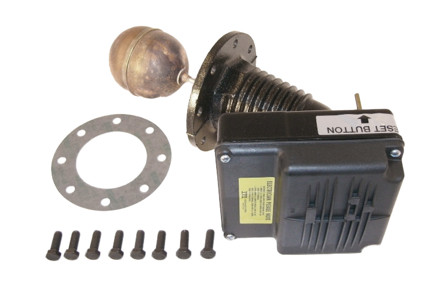

McDonnell & Miller 150S-M-MD-HD - Head Mechanism Only Manual Reset (172810)

Xylem-McDonnell & Miller Combination Low Water Cut-Off and Pump Controller with Snap Acting Manual Reset SPDT Switch with Maximum Differential Operation Head Mechanism Only (Part Number 173302)
$600.52
SKU: 150S-M-MD-HD
Email a co-worker

More about this product

Low water cut-off and pump controller with snap acting SPDT switch for steam boilers with 150 PSI max pressure

Details:

  • Head mechanism only
  • Maximum differential operation
  • Equipped with manual reset
  • For commercial and industrial low or high pressure boiler applications
  • Monel bellows provides corrosion resistance
  • Snap action switches for high temperature service
  • 1 Single pole, single throw switch for pump control
  • 1 Single pole, double throw switch for low water cut-off and alarm actuation
  • Maximum pressure: 150 PSI (10.5 kg/cm2)
  • Model #: 172810
